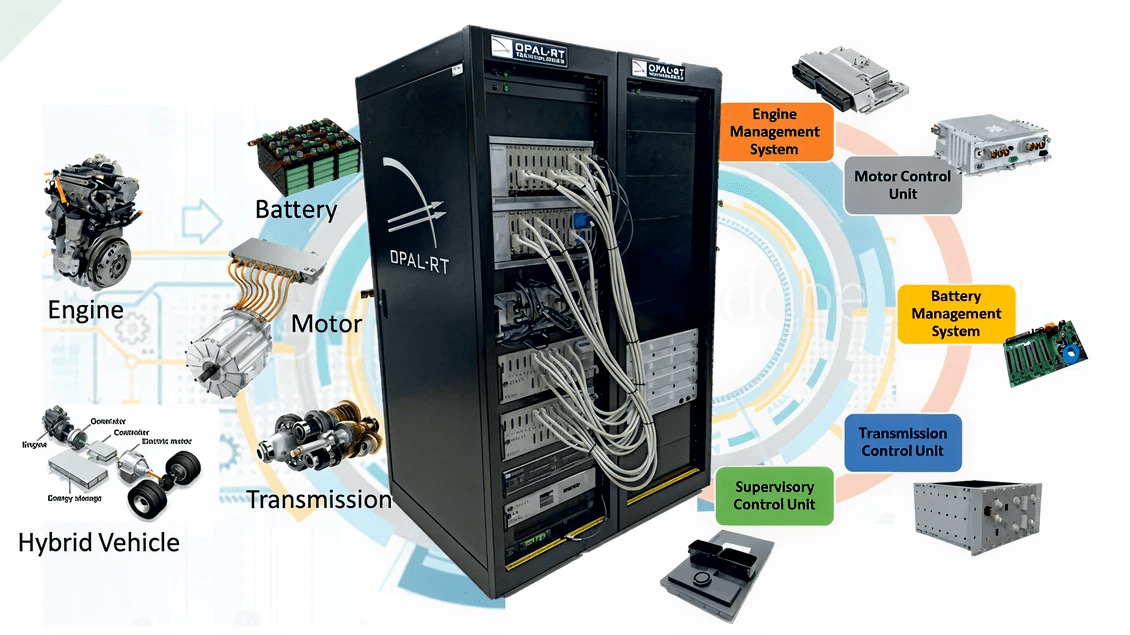

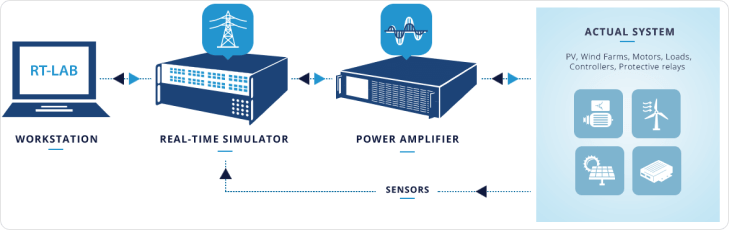

Digital Twin: E Powertrain Hardware in Loop System
- Modular Scalable Architecture up to 1K Volts typically for commercial vehicle
- BMS, MCU, VCU Control System Validation for 2, 3 and 4 Wheeler Applications

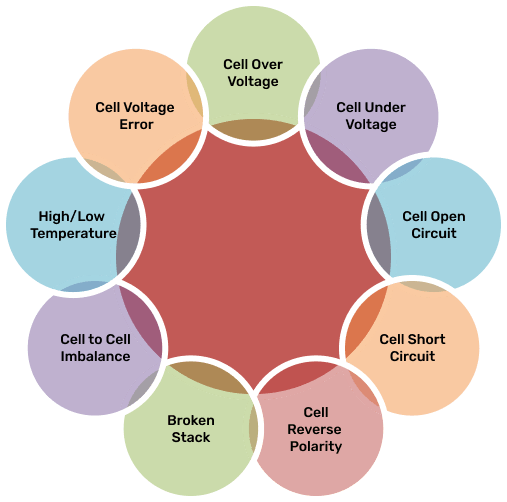

- Verification and Validation for performance, abuse and failures
- ECUs Diagnostics, Service and interface
- Multidisciplinary Plant Models
- Full Matrix Testing

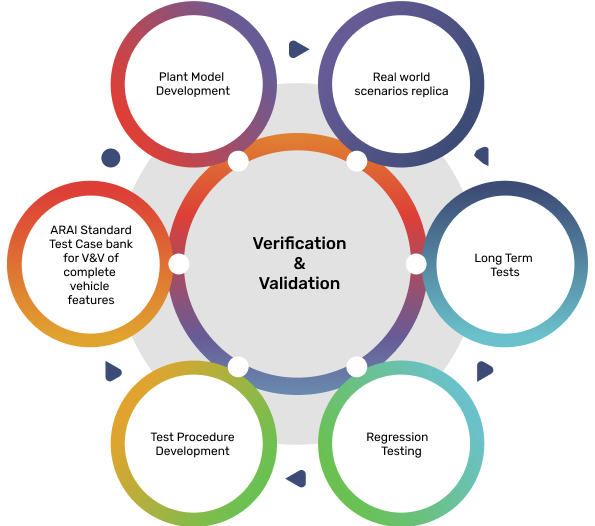

HIL Testing & Validation at ARAI
- End-to-end testing & validation solutions for BMS/ECU/BCU/MCU
- Helps supplier/OEM to mature their product in the early stage of vehicle development without spending budget on prototypes extensively.
- ARAI offers a systematic validation solution starting from requirement analysis, test case scripting & development as per product requirement, Model development, followed by testing & report generation.
BMS Development & HIL Validation
Features for BMS Algorithm Development and Validation
- Coulomb Counting
- State of Charge
- Charger Emulation
- PDU Emulation
- Load Emulation
- Temperature Emulation
- Current Sensor Error
- Active & Passive Balancing
- Balancing Current
- Sleep Current of Slave
- I/O Fault Emulation

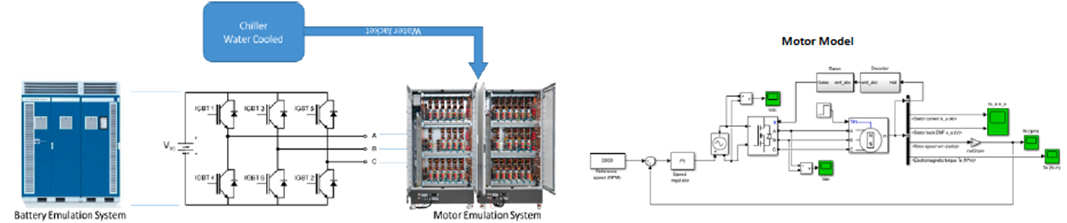

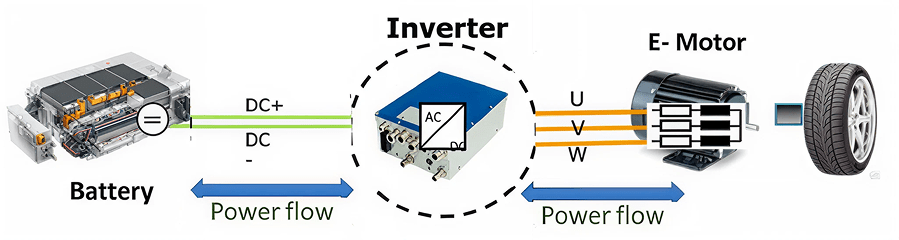

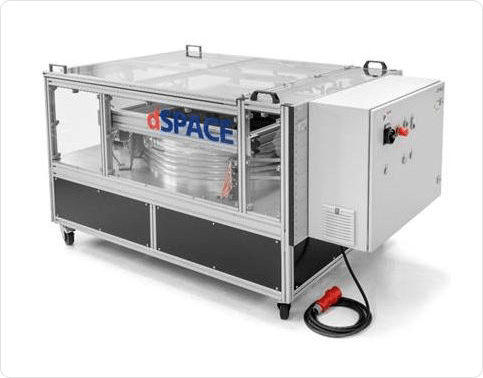

Motor Inverter Power HIL System
E Motor Emulator
- Validation up to 100 kW
- AC Currents up to 350 A continuous
- Inverter Voltages up to 365 V AC
Motor Inverter Power HIL System
DC Emulator
- Voltage of 400 V
- Power of 60 kW
- DC Currents up to 300 A

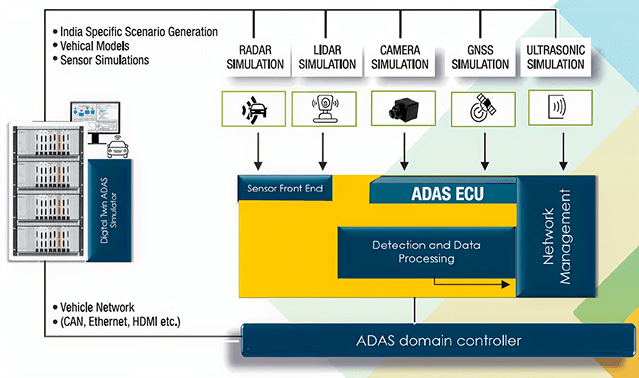

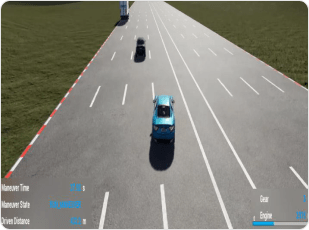

Digital Twin : ADAS Hardware in Loop System
- 76–81 GHz emulation over the air
- Camera scenario injection on GMSL and FPD link
- Plant model for India Specific Scenarios
- Vehicle Network Validation
- Verification and Validation for performance, abuse and failures

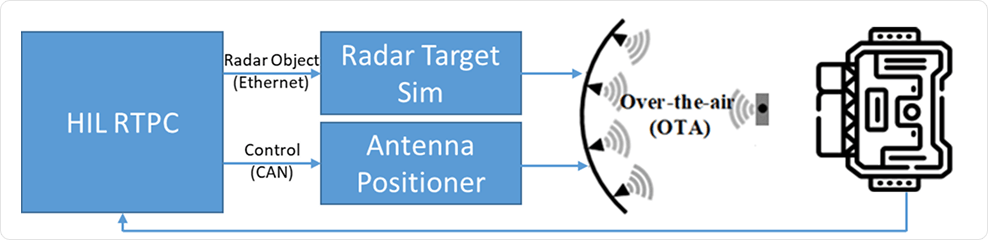

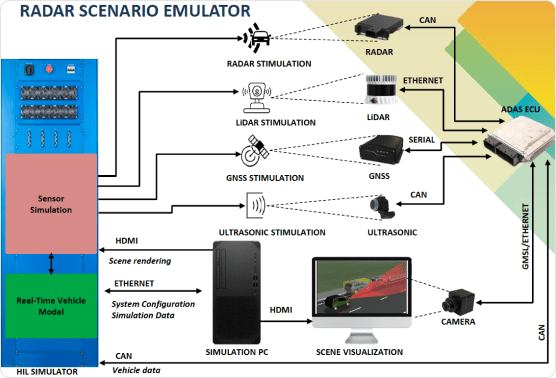

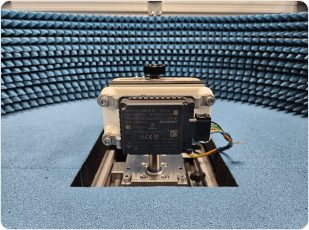

RADAR SCENARIO EMULATOR
- 76–81 GHz emulation over the air
- Camera scenario injection on GMSL and FPD link
- Plant model for India Specific Scenarios
- Vehicle Network Validation
- Verification and Validation for performance, abuse and failures
POWER HIL
E Motor Emulator
- 100 kW continuous power / 500V
- Temperature Emulation of Motor Temperature
- Battery Voltage Bandwidth – 20KHZ
- EMC Proof Design
- Fundamental Frequency DC to 1500HZ
